Overview

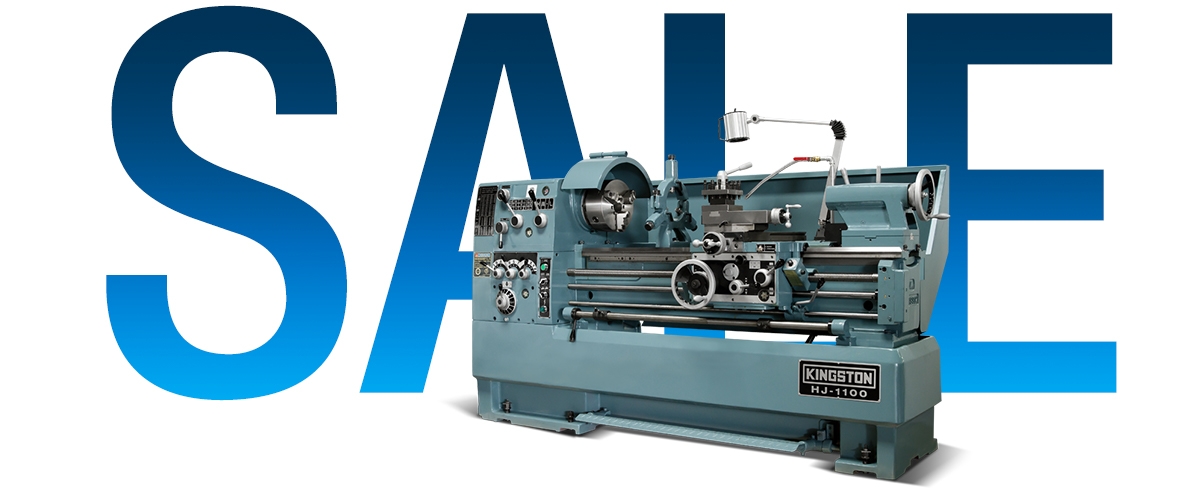

Our rugged HJ is the perfect manual lathe for job shop production, repairs, reworking threads, and making fixtures and tooling. In addition to machine shops, schools also love the HJ because of its ease of operation and ability to withstand abuse. The hardened and ground main spindle features a 3-point bearing support with taper roller bearings for precision cutting.

Optional Accessories

  • 3" Spindle Bore Upgrade (D1-8)
  • 7” Steady Rest (Roller Jaws)
  • 9.25" Steady Rest (Roller Jaws)
  • 8” Steady Rest (Metal Jaws)
  • 3.5” Follow Rest
  • Taper Attachment
  • Carriage Stops
  • Live Centers
  • Aloris Quick Change Tool Posts & Sets
  • Digital Readout (DRO) + Installation
  • 5c Collet Closer + Installation
  • 3-Jaw & 4-Jaw Manual Chucks
  • 14" Face Plate
  • Safety Accessories
  • NRTL / UL Certification



Standard Features

  • 7.5 HP Motor for 230/460V, 3 Phase, 60 Cycle Wiring
  • 2.25” Spindle Bore, 3.07" Upgrade
  • Spindle Nose: D1-6
  • 12 Spindle Speeds: 35 – 2000 RPM (3" Bore: 29 – 1650 RPM)
  • Taiwan Made Chandox SK 10" 3-Jaw Scroll Chuck (SK 12" 3-Jaw w/ 3" Bore)
  • 4-Way Tool Post, T-Slot Compound
  • 4.7” Steady Rest with Roller Jaws
  • Coolant System With Pump And Piping
  • Hardened and Ground Bed and Cross Slide Ways
  • LED Worklight
  • Emergency Stop Button
  • Full-Length Splash Guard & Chuck Guard

Overview

Our rugged HJ is the perfect manual lathe for job shop production, repairs, reworking threads, and making fixtures and tooling. In addition to machine shops, schools also love the HJ because of its ease of operation and ability to withstand abuse. The hardened and ground main spindle features a 3-point bearing support with taper roller bearings for precision cutting.

Optional Accessories

  • 3" Spindle Bore Upgrade (D1-8)
  • 7” Steady Rest (Roller Jaws)
  • 9.25" Steady Rest (Roller Jaws)
  • 8” Steady Rest (Metal Jaws)
  • 3.5” Follow Rest
  • Taper Attachment
  • Carriage Stops
  • Live Centers
  • Aloris Quick Change Tool Posts & Sets
  • Digital Readout (DRO) + Installation
  • 5c Collet Closer + Installation
  • 3-Jaw & 4-Jaw Manual Chucks
  • 14" Face Plate
  • Safety Accessories
  • NRTL / UL Certification



Standard Features

  • 7.5 HP Motor for 230/460V, 3 Phase, 60 Cycle Wiring
  • 2.25” Spindle Bore, 3.07" Upgrade
  • Spindle Nose: D1-6
  • 12 Spindle Speeds: 35 – 2000 RPM (3" Bore: 29 – 1650 RPM)
  • Taiwan Made Chandox SK 10" 3-Jaw Scroll Chuck (SK 12" 3-Jaw w/ 3" Bore)
  • 4-Way Tool Post, T-Slot Compound
  • 4.7” Steady Rest with Roller Jaws
  • Coolant System With Pump And Piping
  • Hardened and Ground Bed and Cross Slide Ways
  • LED Worklight
  • Emergency Stop Button
  • Full-Length Splash Guard & Chuck Guard
Capacity HJ-1100 HJ-1700
Swing Over Bed 17” 17”
Swing Over Cross Slide 10.6” 10.6”
Swing in Gap 24” 24”
Distance Between Centers 43.5” 67”
Width of Bed 11.75” 11.75”
Length in Front of Face Plate 5.9” 5.9”
Height of Center from Leg Bottom 42.3” 42.3”



Headstock  HJ-1100 HJ-1700
Spindle Bore  2.25" (3.07" upgrade) 2.25" (3.07" upgrade)
Taper of Spindle Bore & Center  M.T. #6 x #4  M.T. #6 x #4
Type of Spindle Nose  D1-6 (D1-8) D1-6 (D1-8)
Number of Spindle Speeds 12  12
Spindle Speeds  35 – 2000 RPM (29 – 1650 RPM) 35 – 2000 RPM (29 – 1650 RPM)



Gearbox  HJ-1100 HJ-1700
Number of Feed Changes  16 16
Range of Feeds per Revolution - Longitudinal  0.0012” – 0.039”   0.0012” – 0.039”
Range of Feeds per Revolution - Cross  0.0004” – 0.0117”  0.0004” – 0.0117”
Diameter and Pitch of Leadscrew  ø1.38”, 4 TPI  ø1.38”, 4 TPI
Range of Inch Threads  2 – 72 TPI (44)  2 – 72 TPI (44)
Range of Metric Pitches  0.2 – 14mm (39 kinds)  0.2 – 14mm (39 kinds)



Tool Slide  HJ-1100 HJ-1700
Maximum Travel of Compound  5.7”  5.7”
Maximum Travel of Cross Slide  10.4”  10.4”



Tailstock  HJ-1100 HJ-1700
Tailstock Quill Travel  6.7” 6.7”
Tailstock Quill Diameter 2.3” 2.3”
Taper in Tailstock Quill M.T. #4 M.T. #4



Motor  HJ-1100 HJ-1700
Main Drive Motor  7.5 HP  7.5 HP
Coolant Pump Motor  1/8 HP  1/8 HP



Dimensions HJ-1100 HJ-1700
Floor Space (L x W) 98” x 41”  120” x 41”



Weight  HJ-1100 HJ-1700
  3,520 lbs  3,960 lbs
