HR
30 / 34 / 40 Swing

Get a Quote
Specs Icon
View Specifications
Play button icon
HR 2000 Video
Play button icon
HR 8000 Video
Play button icon
HR 8000 Shop Video
Link icon
Download Brochure

Overview

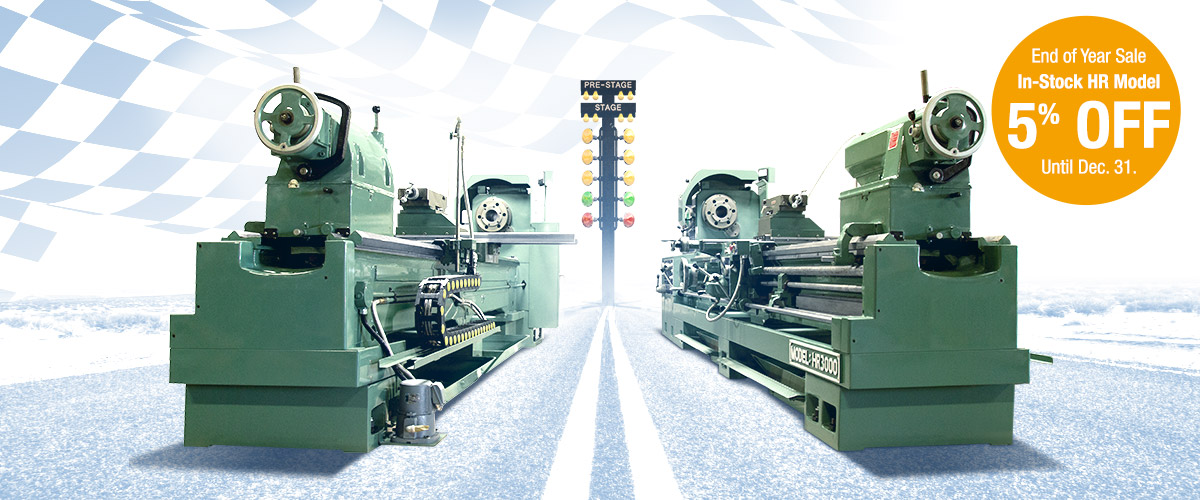

Known as “The Workhorse” in machine shops across the country, Kingston’s heavy-duty HR model has been the industry leader in its class for nearly 40 years. At the heart of this machine is a strong and rigid headstock with a hardened and ground main spindle, which features a 4.09” bore and a 3-point bearing support system for superior cutting capability. Operators benefit from the increased control that comes with 16 spindle speeds (8 – 800 RPM) and a wider range of feeds and threading choices. The unique rib structure of the 22” bedway is made with high-quality casting to ensure greater stability and accuracy in heavy-duty applications. The HR is available in 30”, 34”, or 40" swing and lengths from 80” – 320”.

Optional Accessories

  • 25 HP or 30 HP Main Motor Upgrade (Factory Install Only)
  • 11.9”, 19.7” Steady Rests with Roller Jaws
  • 23.5” Steady Rest with Roller Jaws (34" & 40” Swing Only)
  • Roller Bracket
  • 7.9” Follow Rest
  • Telescopic Taper Attachment ±8° & 3.5”/foot, 19.7” Stroke
  • Drilling Attachment
  • Carriage Stops
  • Low RPM Modification (0.4 – 40 RPM, Factory Install Only)
  • Higher RPM Modification (12 – 1200 RPM, Factory Install Only)
  • Hydraulic Brake System (Factory Install Only)
  • Full-Length Splash Guard (Factory Install Only)
  • Chip Conveyor (Factory Install Only)
  • Digital Readout (DRO) + Installation
  • Live Centers
  • Aloris Quick Change Tool Post & Sets
  • 3-Jaw & 4-Jaw Manual Chucks

Standard Features

  • 20 HP, 230V/460V, 3 Phase, 60 Cycle Motor, Switch & Wiring Complete
  • 4.09” Spindle Bore
  • Spindle Nose: D1-11 Camlock
  • 16 Spindle Speeds: 8 – 800 RPM
  • Headstock Spindle Adaptor: ASA-450 to MT#6
  • 4-Way Rapid Traverse
  • T-Slot on Tool Slide
  • Hardened and Ground Bed and Cross Slide Ways
  • 2-Speed Drive Tailstock Quill
  • Coolant System with Pump and Piping
  • Pull Drawer Chip (Coolant) Pan

  • Sliding Chuck Guard

Overview

Known as “The Workhorse” in machine shops across the country, Kingston’s heavy-duty HR model has been the industry leader in its class for nearly 40 years. At the heart of this machine is a strong and rigid headstock with a hardened and ground main spindle, which features a 4.09” bore and a 3-point bearing support system for superior cutting capability. Operators benefit from the increased control that comes with 16 spindle speeds (8 – 800 RPM) and a wider range of feeds and threading choices. The unique rib structure of the 22” bedway is made with high-quality casting to ensure greater stability and accuracy in heavy-duty applications. The HR is available in 30”, 34”, or 40" swing and lengths from 80” – 320”.

Optional Accessories

  • 25 HP or 30 HP Main Motor Upgrade (Factory Install Only)
  • 11.9”, 19.7” Steady Rests with Roller Jaws
  • 23.5” Steady Rest with Roller Jaws (34" & 40” Swing Only)
  • Roller Bracket
  • 7.9” Follow Rest
  • Telescopic Taper Attachment ±8° & 3.5”/foot, 19.7” Stroke
  • Drilling Attachment
  • Carriage Stops
  • Low RPM Modification (0.4 – 40 RPM, Factory Install Only)
  • Higher RPM Modification (12 – 1200 RPM, Factory Install Only)
  • Hydraulic Brake System (Factory Install Only)
  • Full-Length Splash Guard (Factory Install Only)
  • Chip Conveyor (Factory Install Only)
  • Digital Readout (DRO) + Installation
  • Live Centers
  • Aloris Quick Change Tool Post & Sets
  • 3-Jaw & 4-Jaw Manual Chucks

Standard Features

  • 20 HP, 230V/460V, 3 Phase, 60 Cycle Motor, Switch & Wiring Complete
  • 4.09” Spindle Bore
  • Spindle Nose: D1-11 Camlock
  • 16 Spindle Speeds: 8 – 800 RPM
  • Headstock Spindle Adaptor: ASA-450 to MT#6
  • 4-Way Rapid Traverse
  • T-Slot on Tool Slide
  • Hardened and Ground Bed and Cross Slide Ways
  • 2-Speed Drive Tailstock Quill
  • Coolant System with Pump and Piping
  • Pull Drawer Chip (Coolant) Pan

  • Sliding Chuck Guard

Capacity 30" 34"  40"
Swing Over Bed 30" 34" 40"
Swing Over Cross Slide 20.7” 25.1” 31.0”
Swing Over Gap (Up to C.C. 160˚ Only) 41.2” 45.6” 51.5”
Distance Between Centers  80” / 120” / 160” / 200” / 240” / 280” / 320” 80” / 120” / 160” / 200” / 240” / 280” / 320” 80” / 120” / 160” / 200” / 240” / 280” / 320”
Width of Bed 22" 22" 22"
Height from Floor to Work Center  46.5”  48.6”  51.5"



Headstock  30"  34"   40"
Spindle Bore 4.09” 4.09” 4.09”
Taper of Spindle Bore & Center  ASA #450 x MT #6  ASA #450 x MT #6  ASA #450 x MT #6
Spindle Nose  D1-11, opt. A1-11  D1-11, opt. A1-11  D1-11, opt. A1-11
Number of Spindle Speed  16  16 16
Spindle Speed  8  – 800 RPM, 12 –1200 RPM (Opt)

8  – 800 RPM, 12 –1200 RPM (Opt)

 8  – 800 RPM, 12 –1200 RPM (Opt)



Gear Box  30"  34"  40"
Number of Feed Changes  Fine (20), Normal (40), Coarse (30)  Fine (20), Normal (40), Coarse (30)  Fine (20), Normal (40), Coarse (30)
Range of Long. Feeds per Rev.

0.00048” – 0.0168”, 0.0024” – 0.0337”, 0.0384” – 0.2694”

0.00048” – 0.0168”, 0.0024” – 0.0337”, 0.0384” – 0.2694”

0.00048” – 0.0168”, 0.0024” – 0.0337”, 0.0384” – 0.2694”
Longitudinal Cross  ½ of Longitudinal Feed ½ of Longitudinal Feed ½ of Longitudinal Feed
Leadscrew Dia. & Threads per Inch  1.9” 2 TPI (P=12 mm)  1.9” 2 TPI (P=12 mm)  1.875” 2 TPI (P=12 mm)
Threading range - Whitworth  2 to 28 TPI (40) / Coarse 5/8” to 8” Pitch (16) 2 to 28 TPI (40) / Coarse 5/8” to 8” Pitch (16) 2 to 28 TPI (40) / Coarse 5/8” to 8” Pitch (16)
Threading range - Metric  1 to 14 Pitch (31)  / Coarse 16 to 200 mm Pitch (61) 1 to 14 Pitch (31)  / Coarse 16 to 200 mm Pitch (61) 1 to 14 Pitch (31)  / Coarse 16 to 200 mm Pitch (61)
Threading range - Module  0.5 to 7 M (20) / Coarse 8 to 56 M (30) 0.5 to 7 M (20) / Coarse 8 to 56 M (30) 0.5 to 7 M (20) / Coarse 8 to 56 M (30)
Threading range - D.P.  56 to 4 D.P (40) / Coarse 3.5” to .5” D.P. (30) 56 to 4 D.P (40) / Coarse 3.5” to .5” D.P. (30) 56 to 4 D.P (40) / Coarse 3.5” to .5” D.P. (30)



Tool Slide  30"  34"  40"
Maximum Travel of Compound  9.4”  9.4”  9.4”
Maximum Travel of Cross Slide  21.2”  21.2”  21.2”



Tailstock  30"  34"  40"
Tailstock Quill Travel  11.8”  11.8”   11.8”
Tailstock Quill Diameter  5.1”  5.1”  5.1”
Tailstock Center  M.T. #6  M.T. #6  M.T. #6



Motor  30"  34"  40"
Main Drive Motor 20 HP (25 or 30 HP Opt.) 20 HP (25 or 30 HP Opt.)  20 HP (25 or 30 HP Opt.)
Coolant Pump Motor 1/4 HP  1/4 HP  1/4 HP



Dimensions  30" 34"  40"
Floor Space (L x W) 193” / 233” / 256” / 312” / 358” / 390” / 431” x 82" 193” / 233” / 256” / 312” / 358” / 390” / 431” x 82" 193” / 233” / 256” / 312” / 358” / 390” / 431” x 82"
Weight (lbs) 10,230 / 11,770 / 14,300 / 15,840 / 18,370 / 20,420 / 23,500  10,450 / 11,990 / 14,520 / 16,060 / 18,590 / 20,640 / 23,650  10,940 / 12,250 / 14,790 / 16,330 / 18,860 / 20,900 / 23,950
