Overview

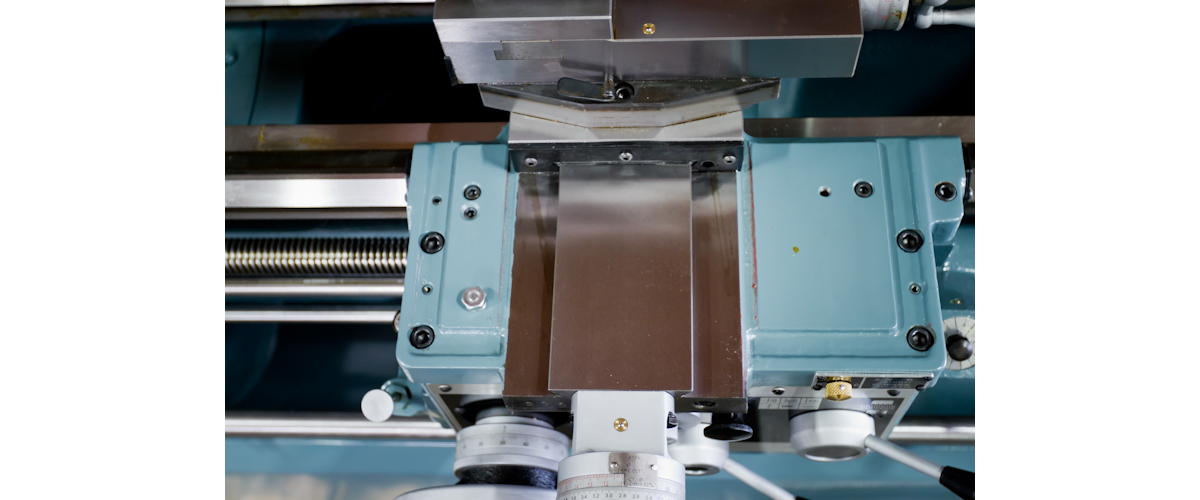

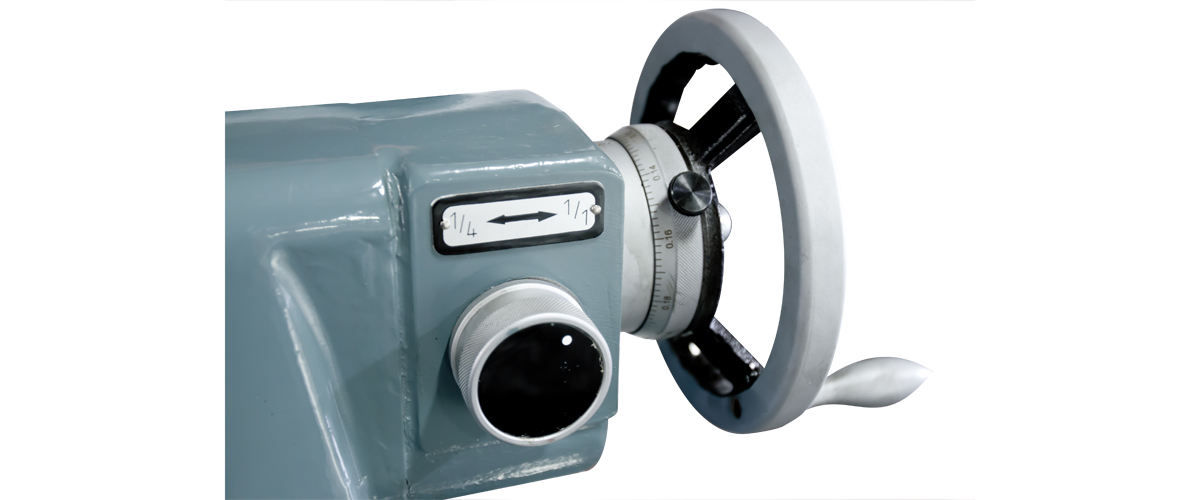

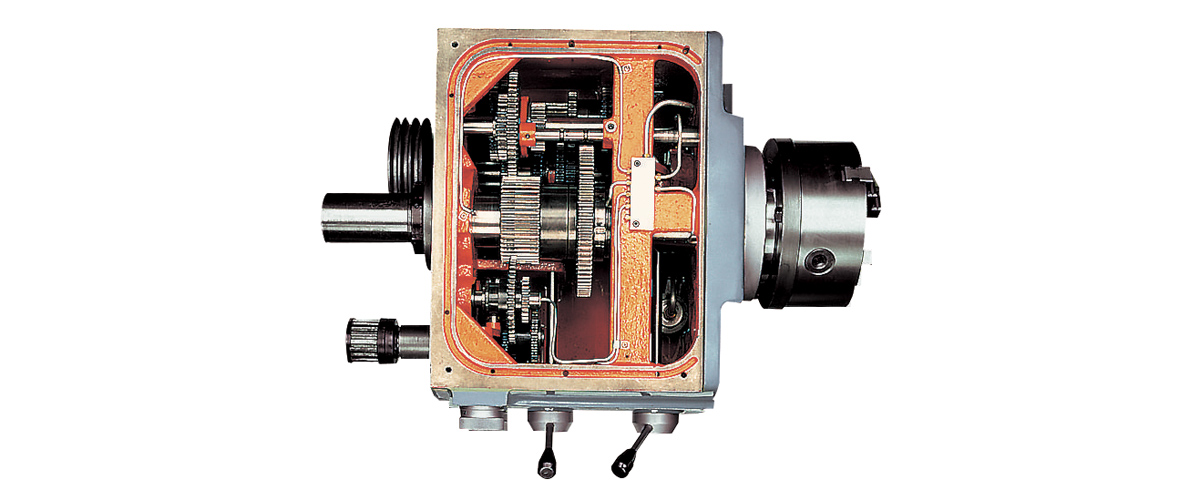

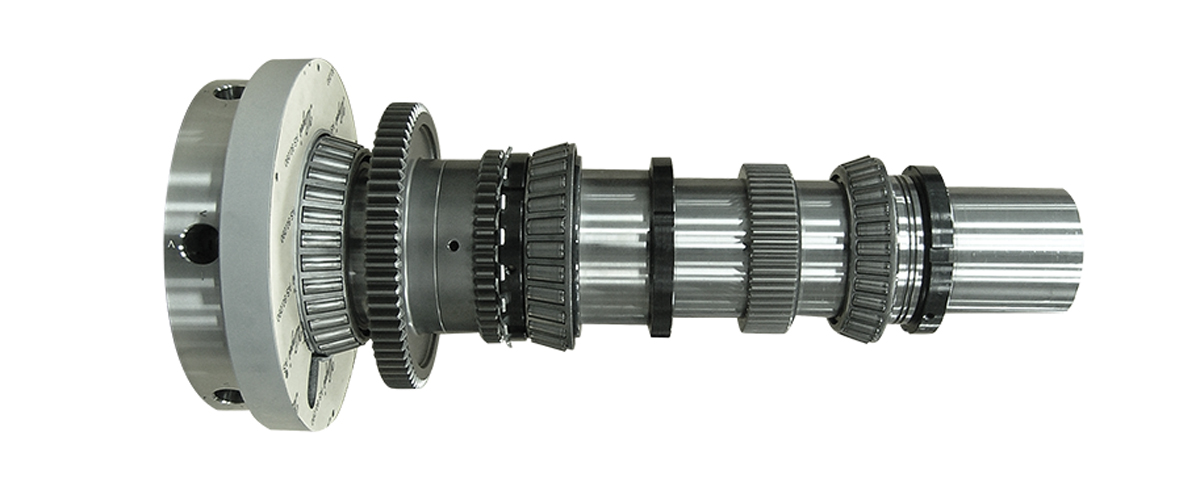

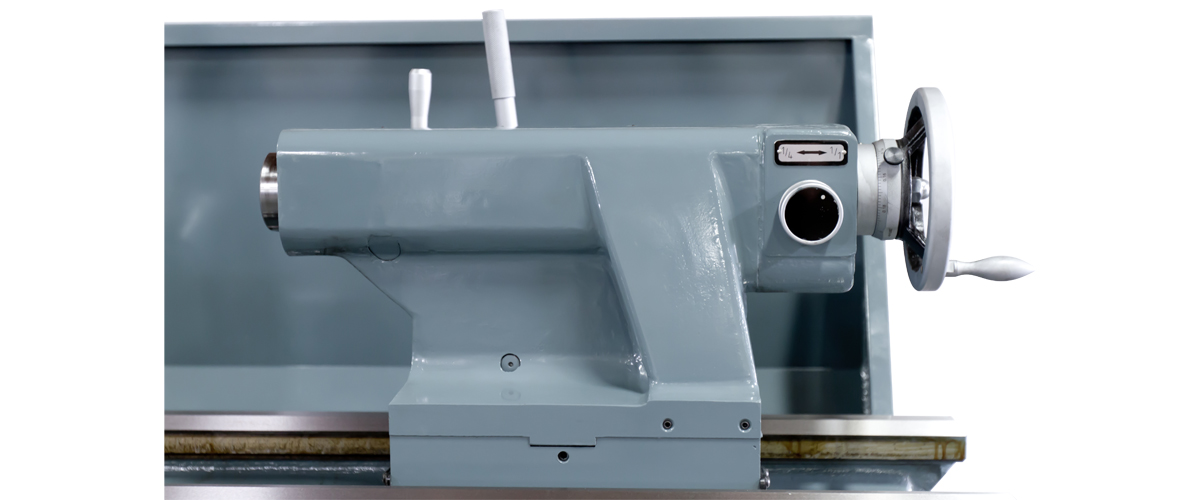

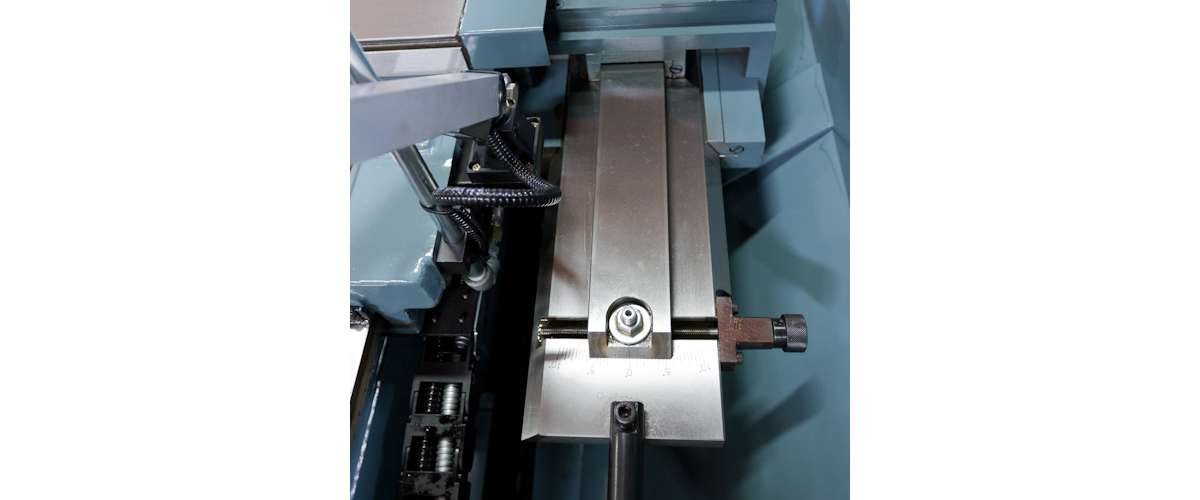

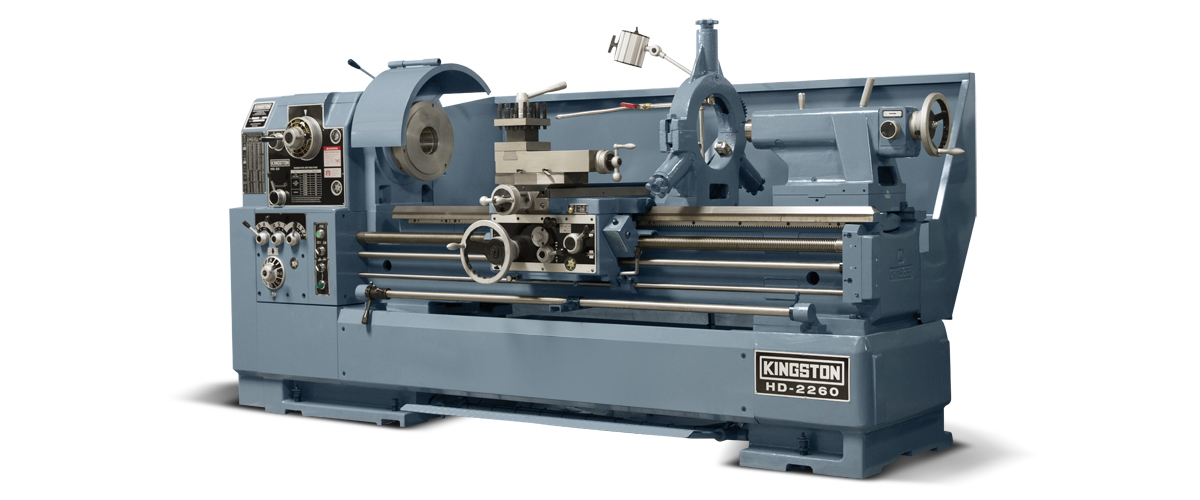

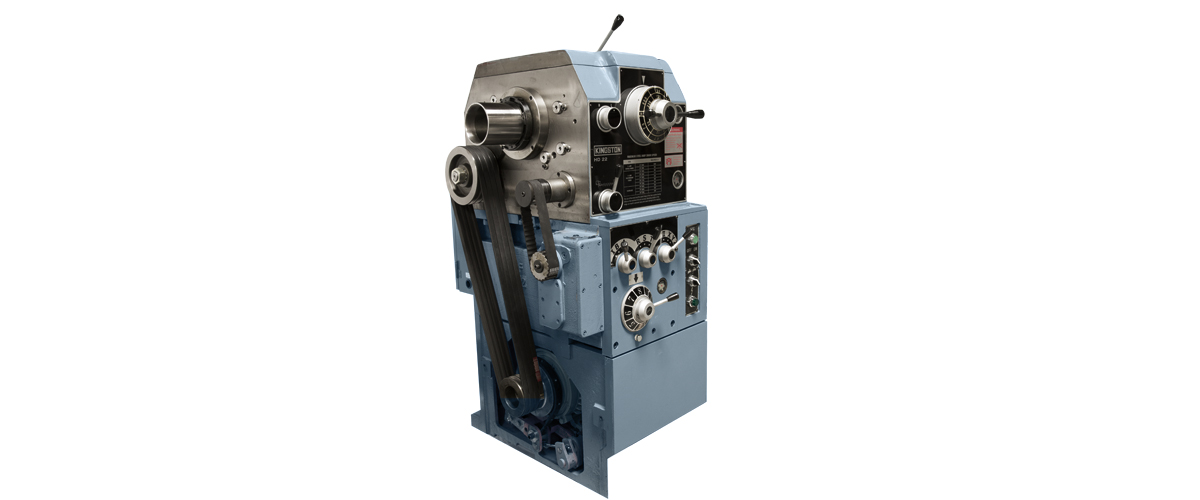

The big brother to our popular HJ model, Kingston’s HD is a versatile precision lathe that can tackle all of your projects, large and small. The hardened and ground main spindle features a 3-point bearing support with taper roller bearings for heavy-duty precision cutting. The HD 22” swing model features a D1-8 Camlock spindle, 4 TPI lead screw, and a 10 HP motor, while the HD 26” and 30" swing models feature a D1-11 Camlock spindle, 2 TPI lead screw, and a 15 HP Motor. The timing-belt-driven power train system includes 12 speeds from 13 – 1200 RPM, complete with foot brake. Both bedway and cross slide are hardened and ground. The tailstock quill is heat treated and precisely ground, with a 9.8” travel and 1:1 and 1:4 changeable feeds. Machine lengths available from 35” – 160”. Z-axis rapid traverse standard on 90 C.C. and longer lathes.

Optional Accessories

  • Additional 10", 15", and 18.9" Steady Rests
  • 7” Follow Rest
  • Taper Attachment
  • Drilling Attachment
  • Rapid Traverse on 35" & 60" C.C. Lathes
  • Carriage Stops
  • Live Centers
  • Aloris Quick Change Tool Posts & Sets
  • Digital Readout (DRO) + Installation
  • 3-Jaw & 4-Jaw Manual Chucks
  • 20" Face Plate
  • Safety Accessories
  • NRTL / UL Certification

Standard Features

  • 10 HP (22”) / 15 HP (26”/30"), 230/460V 3 phase, 60 cycle, Switch & Wiring Complete
  • 4.09” Spindle Bore
  • Spindle Nose: D1-8 (22”) / D1-11 (26”/30") Camlock
  • 12 Spindle Speeds (13 – 1200 RPM)
  • Lead Screw: 4 TPI (22”) / 2 TPI (26”/30")
  • 10” Steady Rest with Roller Jaws
  • 4-Way Tool Post, T-Slot Compound
  • Z-Axis Rapid Traverse Standard on 90" C.C. and Longer Lathes
  • Coolant System With Pump And Piping
  • LED Worklight
  • Emergency Stop Button
  • 2-Speed Drive Tailstock Spindle
  • HD Tailstock Crank
  • Full-Length Splash Guard & Chuck Guard

Overview

The big brother to our popular HJ model, Kingston’s HD is a versatile precision lathe that can tackle all of your projects, large and small. The hardened and ground main spindle features a 3-point bearing support with taper roller bearings for heavy-duty precision cutting. The HD 22” swing model features a D1-8 Camlock spindle, 4 TPI lead screw, and a 10 HP motor, while the HD 26” and 30" swing models feature a D1-11 Camlock spindle, 2 TPI lead screw, and a 15 HP Motor. The timing-belt-driven power train system includes 12 speeds from 13 – 1200 RPM, complete with foot brake. Both bedway and cross slide are hardened and ground. The tailstock quill is heat treated and precisely ground, with a 9.8” travel and 1:1 and 1:4 changeable feeds. Machine lengths available from 35” – 160”. Z-axis rapid traverse standard on 90 C.C. and longer lathes.

Optional Accessories

  • Additional 10", 15", and 18.9" Steady Rests
  • 7” Follow Rest
  • Taper Attachment
  • Drilling Attachment
  • Rapid Traverse on 35" & 60" C.C. Lathes
  • Carriage Stops
  • Live Centers
  • Aloris Quick Change Tool Posts & Sets
  • Digital Readout (DRO) + Installation
  • 3-Jaw & 4-Jaw Manual Chucks
  • 20" Face Plate
  • Safety Accessories
  • NRTL / UL Certification

Standard Features

  • 10 HP (22”) / 15 HP (26”/30"), 230/460V 3 phase, 60 cycle, Switch & Wiring Complete
  • 4.09” Spindle Bore
  • Spindle Nose: D1-8 (22”) / D1-11 (26”/30") Camlock
  • 12 Spindle Speeds (13 – 1200 RPM)
  • Lead Screw: 4 TPI (22”) / 2 TPI (26”/30")
  • 10” Steady Rest with Roller Jaws
  • 4-Way Tool Post, T-Slot Compound
  • Z-Axis Rapid Traverse Standard on 90" C.C. and Longer Lathes
  • Coolant System With Pump And Piping
  • LED Worklight
  • Emergency Stop Button
  • 2-Speed Drive Tailstock Spindle
  • HD Tailstock Crank
  • Full-Length Splash Guard & Chuck Guard



Capacity HD-22 HD-26 HD-30
Swing Over Bed 22"    26" 30“
Swing Over Cross Slide 13" 17.5" 21.5“
Swing In Gap 31.3" 35.1” 38.9”
Gap Width in Front of the Face Plate 10.6” 10.6” 10.6“
Distance Between Centers 35" / 60” / 90” / 120” / 160” 35" / 60” / 90” / 120” / 160” 35" / 60” / 90” / 120” / 160”
Width of Bed 15.7” 15.7” 15.7”
Height of Center from Leg Bottom 42.0” 44.3” 46.5”



Headstock  HD-22 HD-26 HD-30
Spindle Bore 4.09" 4.09" 4.09"
Taper of Spindle Bore & Center  M.T. #7 x #5 M.T. #7 x #5 M.T. #7 x #5
Type of Spindle Nose D1-8 D1-11 D1-11
Number of Spindle Speed 12 12 12
Spindle Speed 13 – 1200 RPM 13 – 1200 RPM 13 – 1200 RPM



Gearbox HD-22 HD-26

HD-30
Number of Feed Changes  16  16  16
Range of Feeds per Revolution - Longitudinal   0.0012” – 0.039”  0.0012” – 0.039”  0.0012” – 0.039”
Range of Feeds per Revolution - Cross  0.0004” – 0.0117”  0.0007” – 0.0188”  0.0007” – 0.0188”
Leadscrew Diameter & Threads / Inch  1.77”, 4 TPI  1.77”, 2 TPI  1.77”, 2 TPI
Range of Inch Threads 2 – 72 (44)  1 – 42 (48)   1 – 42 (48)
Range of Metric Pitches  0.2 – 14 (39)  0.4 – 28 (44)  0.4 – 28 (44)



Tool Slide  HD-22 HD-26 HD-30
Maximum Travel of Compound  9.5”  9.5”  9.5”
Maximum Travel of Cross Slide  15.8” 15.8” 15.8”



Tailstock HD-22 HD-26 HD-30
Tailstock Quill Travel  9.8”  9.8”  9.8”
Tailstock Quill Diameter  2.9”  2.9”  2.9”
Taper in Tailstock Quill  M.T. #5  M.T. #5  M.T. #5



Motor HD-22 HD-26 HD-30
Main Drive Motor  10 HP  15 HP  15 HP
Coolant Pump Motor  1/8 HP 1/8 HP 1/8 HP



Dimensions HD-22 HD-26 HD-30
Floor Space (L x W x H) 87" / 114” / 146” / 177” / 217” x 47" x 59” 87" / 114” / 146” / 177” / 217” x 47" x 59” 87" / 114” / 146” / 177” / 217” x 47" x 59”



Weight HD-22 HD-26 HD-30
35" 5,100 lbs 5,300 lbs

5,800 lbs
60" 5,300 lbs 5,500 lbs 6,000 lbs
90" 6,200 lbs 6,300 lbs 6,900 lbs
120" 6,700 lbs 7,000 lbs 7,500 lbs
160" 7,000 lbs 8,000 lbs 8,600 lbs
